01. Y-axis Wheel Assembly

Written By: Paul Cronje (and 2 other contributors)
  • Comments: 7
  • Favorites: 0
  • Completions: 16

Difficulty

Moderate

Steps

6

Time Required

Suggest a time??

Sections

1

Flags

0

  1. Left Y-carriage plate

    • Left Y-carriage plate

    • Right Y-carriage plate

    • V-Wheel Kit (8 Pcs)

    • Eccentric Nut (4 Pcs)

    Edit

  2. 3mm Allen Key

    • 3mm Allen Key

    • No. 8 Spanner

    • No. 10 Spanner

    Edit

  3. Press the bearing into the delrin V-wheel Place the washer into the centre of the V-wheel Press the second bearing into the other side of the V-Wheel

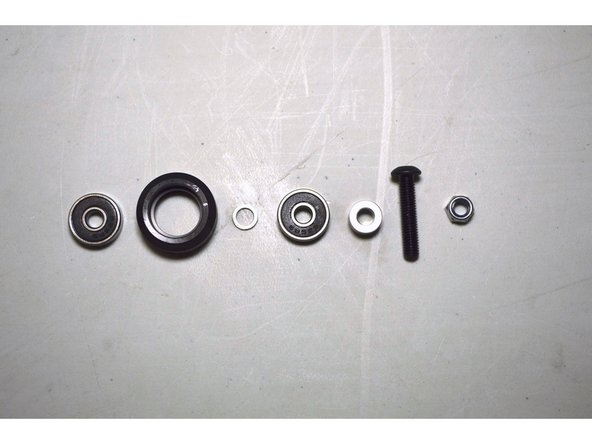

    • Press the bearing into the delrin V-wheel

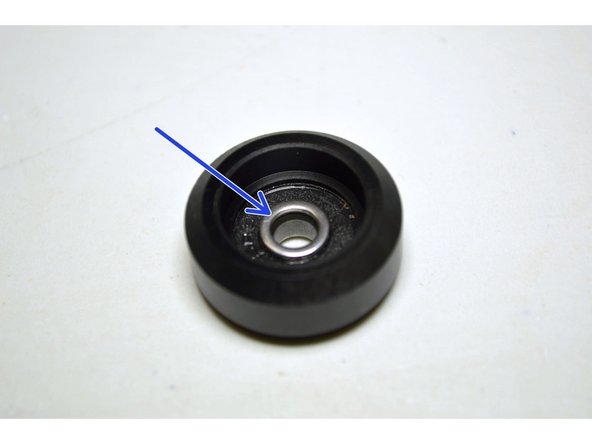

    • Place the washer into the centre of the V-wheel

    • Press the second bearing into the other side of the V-Wheel

    • Insert the M5x35 screw through the bearings

    Edit

  4. Mount 4 V-wheels to the holes circled in RED with the spacers and locknuts in the V-wheel kits Make sure the V-wheels can turn easily Make sure the V-wheels can turn easily

    • Mount 4 V-wheels to the holes circled in RED with the spacers and locknuts in the V-wheel kits

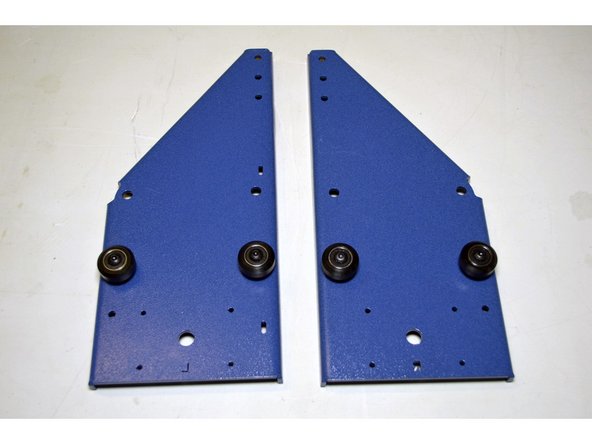

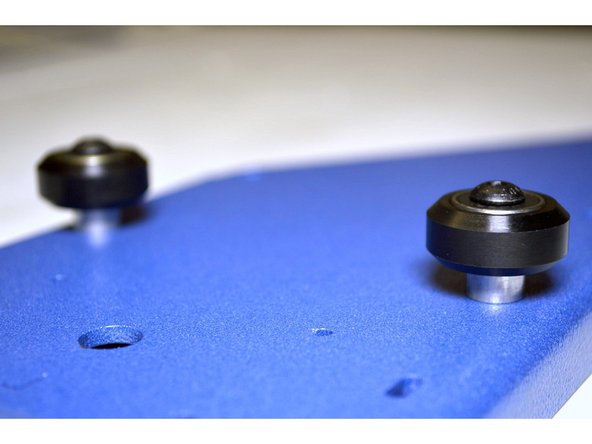

    • Make sure the V-wheels can turn easily

    Edit

  5. Mount 4 V-wheels to the holes circled in YELLOW with the eccentric nuts instead of the aluminium spacers. Make sure the notch on the eccentric nut faces away from the fixed V-wheel Check if the V-wheels can turn easily

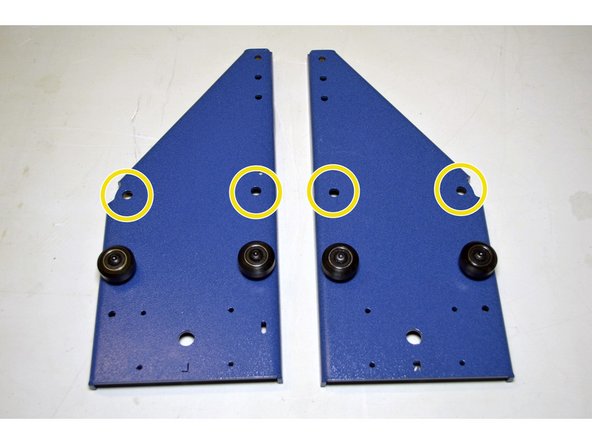

    • Mount 4 V-wheels to the holes circled in YELLOW with the eccentric nuts instead of the aluminium spacers.

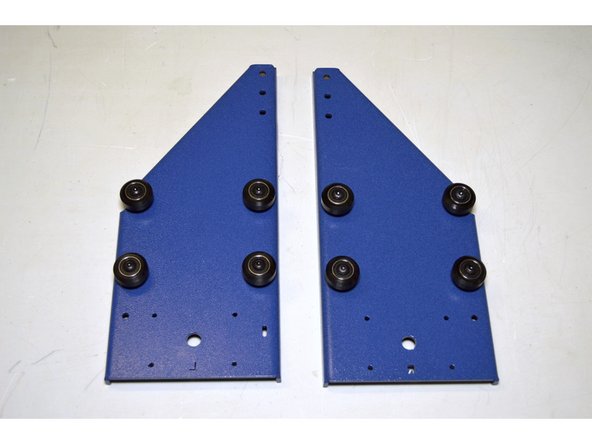

    • Make sure the notch on the eccentric nut faces away from the fixed V-wheel

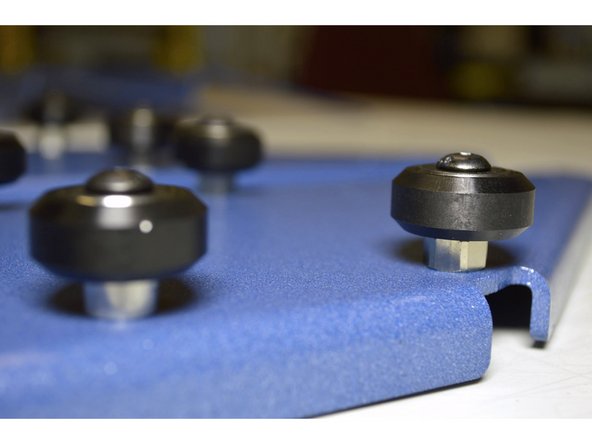

    • Check if the V-wheels can turn easily

    Edit

  6. Slide the 20x40 V-slot profile in between the V-wheels

    • Slide the 20x40 V-slot profile in between the V-wheels

    • Turn the eccentric nuts with the No.10 spanner to eliminate the play between the V-wheels and the aluminium profile

    • Ensure the V-wheels are still fastened and can turn easily

    • Remove the aluminium profile

    Edit
Conclusion

35 minutes

16 other people completed this guide.
