04. Connect Solid State Relay and mount waste board

Written By: Paul Cronje
  • Comments: 0
  • Favorites: 0
  • Completions: 4

Difficulty

Moderate

Steps

4

Time Required

00:05:00

Sections

1

Flags

0

  1. 6 pcs M6x16mm Cap Screws (Prefiously removed from the waste board)

    • 6 pcs M6x16mm Cap Screws (Prefiously removed from the waste board)

    Edit

  2. Phillips Screw Driver 5mm Allen Key

    • Phillips Screw Driver

    • 5mm Allen Key

    Edit

  3. Connect the red and black cable which was connected to the old relay the new relay as shown These cables supply the Neutral 220V AC to the 400W power supply

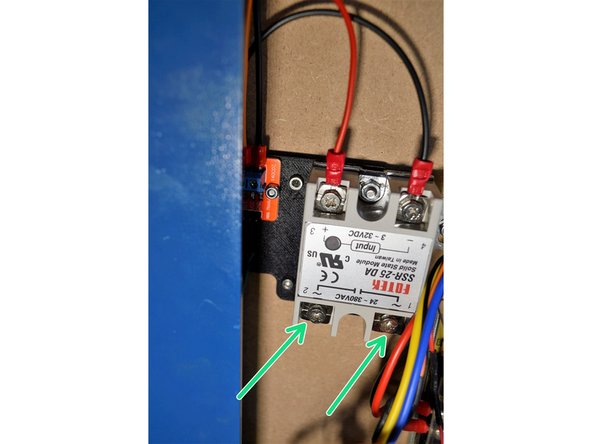

    • Connect the red and black cable which was connected to the old relay the new relay as shown

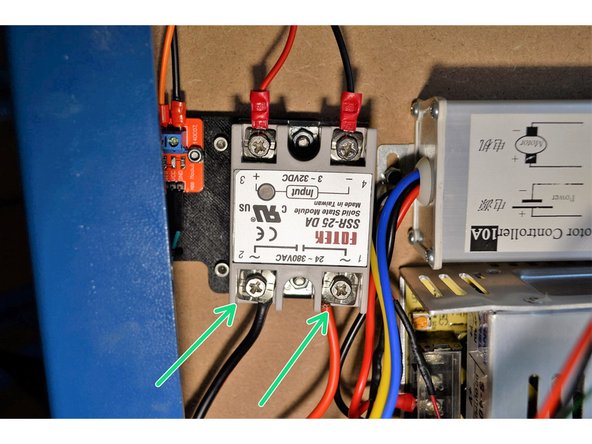

    • These cables supply the Neutral 220V AC to the 400W power supply

    Edit

  4. Use the 6 pcs M6x16 Cap screws previously removed to mount the electronics board and rear waste board back into position

    • Use the 6 pcs M6x16 Cap screws previously removed to mount the electronics board and rear waste board back into position

    Edit
Finish Line

4 other people completed this guide.
