06. Connect laser cables

Written By: Paul Cronje
  • Comments: 0
  • Favorites: 0
  • Completions: 5

Difficulty

Easy

Steps

4

Time Required

00:02:00

Sections

1

Flags

0

  1. 12V E-Stop cable

    • 12V E-Stop cable

    Edit

  2. Phillips Screw driver

    • Phillips Screw driver

    • Small Flat screw driver

    Edit

  3. Connect the 12V E-Stop cable to the orange side (normally Closed) on the E-Stop as shown Connect the 12V E-Stop cable to the orange side (normally Closed) on the E-Stop as shown

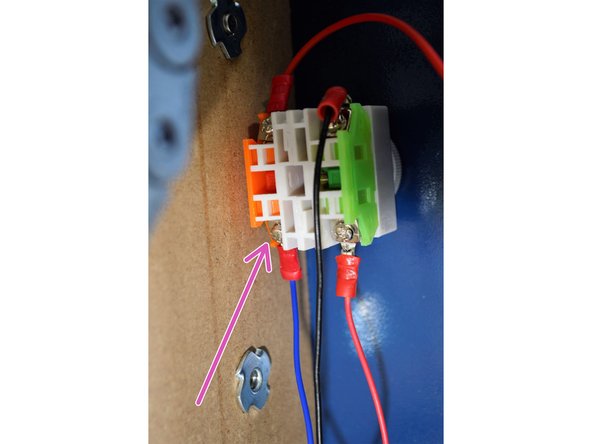

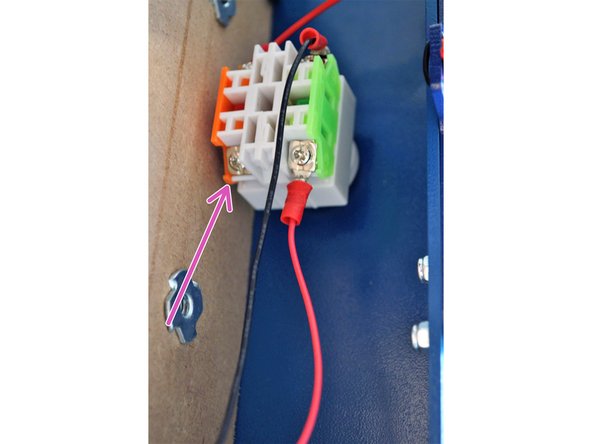

    • Connect the 12V E-Stop cable to the orange side (normally Closed) on the E-Stop as shown

    Edit

  4. Connect the other end of the cable to one of the V+ ports on the 12V power supply as shown Connect the black ground cable from the laser to one of the GND terminals on the 12V power supply.

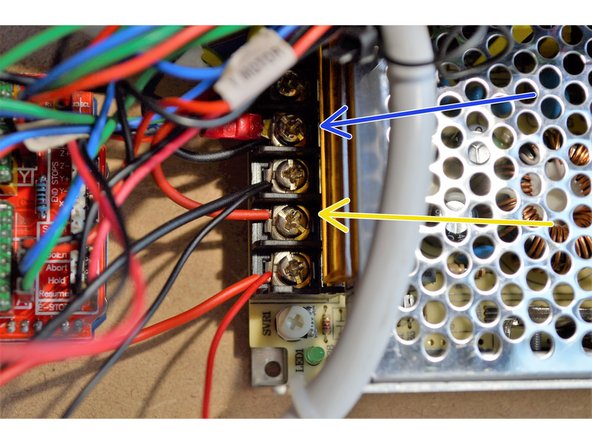

    • Connect the other end of the cable to one of the V+ ports on the 12V power supply as shown

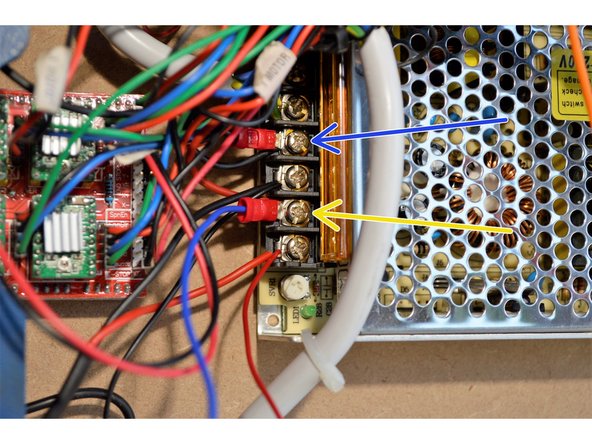

    • Connect the black ground cable from the laser to one of the GND terminals on the 12V power supply.

    Edit
