X-gantry assembly

Written By: Paul Cronje
  • Comments: 0
  • Favorites: 0

Difficulty

Easy

Steps

4

Time Required

00:05:00

Sections

1

Flags

2

In Progress

In Progress

This guide is currently being written. Reload periodically to see the latest changes.

Private

Private

This guide will not appear in search results and can only be viewed by team members!

Quiz

0

  1. Slide the aluminium profile onto the V-wheels of the spindle assembly with the logo on the profile in the same orientation as the spindle assembly.

    • Slide the aluminium profile onto the V-wheels of the spindle assembly with the logo on the profile in the same orientation as the spindle assembly.

  2. Remove the cover from the left gantry by unscrewing the 6 screws as shown in the pictures with the philips screw driver Remove the cover from the left gantry by unscrewing the 6 screws as shown in the pictures with the philips screw driver Remove the cover from the left gantry by unscrewing the 6 screws as shown in the pictures with the philips screw driver

    • Remove the cover from the left gantry by unscrewing the 6 screws as shown in the pictures with the philips screw driver

  3. Mount the left gantry to the left side of the aluminium profile with the 4 x M5x16 black button head cap screws.

    • Mount the left gantry to the left side of the aluminium profile with the 4 x M5x16 black button head cap screws.

    • Add a small drop of Pratley Pratlock to the screw thread before inserting the screws.

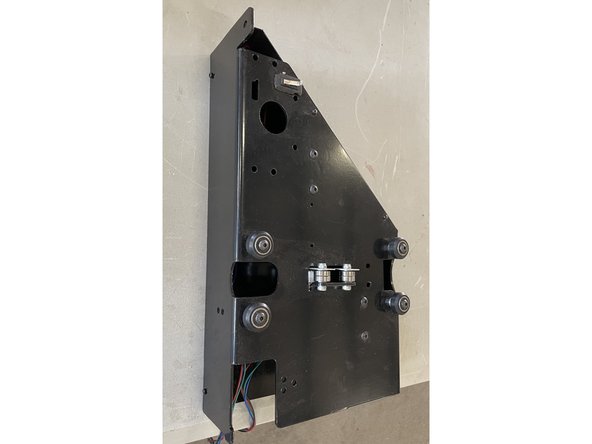

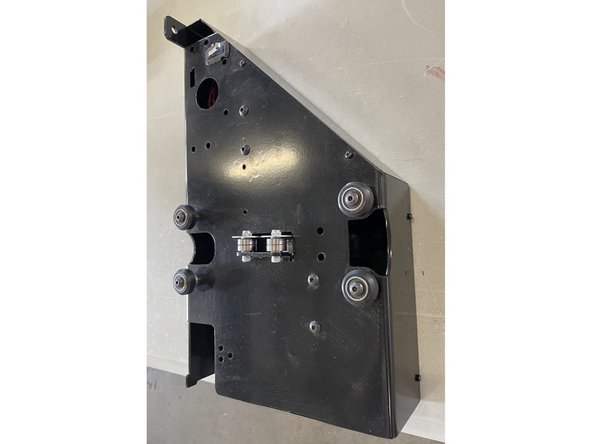

  4. Remove the cover from the right gantry by unscrewing the 6 screws as shown in the pictures with the philips screw driver Remove the cover from the right gantry by unscrewing the 6 screws as shown in the pictures with the philips screw driver Remove the cover from the right gantry by unscrewing the 6 screws as shown in the pictures with the philips screw driver

    • Remove the cover from the right gantry by unscrewing the 6 screws as shown in the pictures with the philips screw driver
