  1. X-Axis Assembly
    • X-Axis Assembly

    • 20x60 V-Slot Profile

    • GT2 Timing Belt (>450mm)

    • M5 Plate Nut (2 Pcs)

    • M5x6 Grub Screw (2 Pcs)

  2. Pratley Pratlock
    • Pratley Pratlock

    • Side Cutter

    • 2.5mm Allen Key

  3. Slide the 20x60 V-Slot profile into the X-Axis Assembly as shown Slide the GT2 belt underneath one of the top X-Axis V-Wheels, over the GT2 Pulley and underneath the other V-wheel as shown

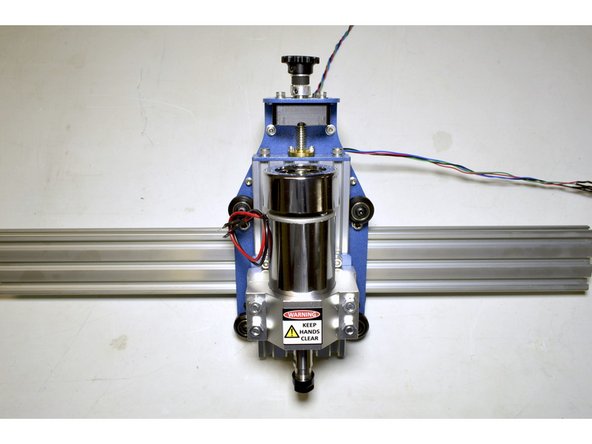

    • Slide the 20x60 V-Slot profile into the X-Axis Assembly as shown

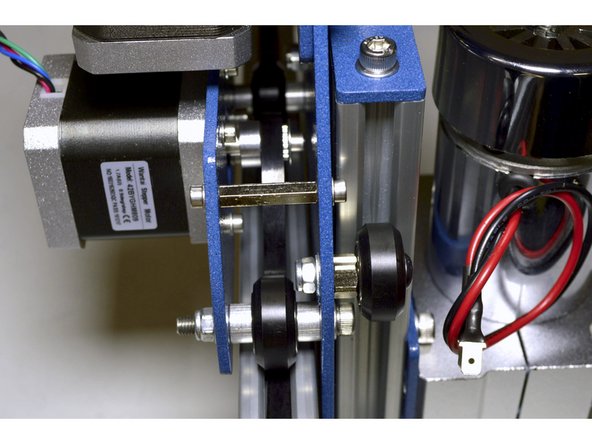

    • Slide the GT2 belt underneath one of the top X-Axis V-Wheels, over the GT2 Pulley and underneath the other V-wheel as shown

  4. Fix the belt at the end with the M5 Plate Nuts (2 Pcs), M5x6 Grub Screw (2 Pcs) and Pratley Pratlock in the same way as previously Tension the belt and fix the other side

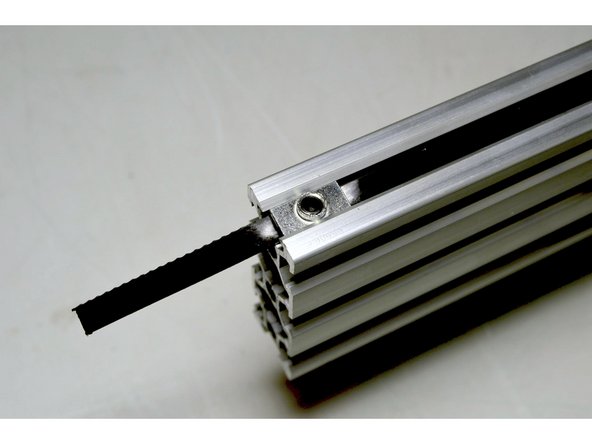

    • Fix the belt at the end with the M5 Plate Nuts (2 Pcs), M5x6 Grub Screw (2 Pcs) and Pratley Pratlock in the same way as previously

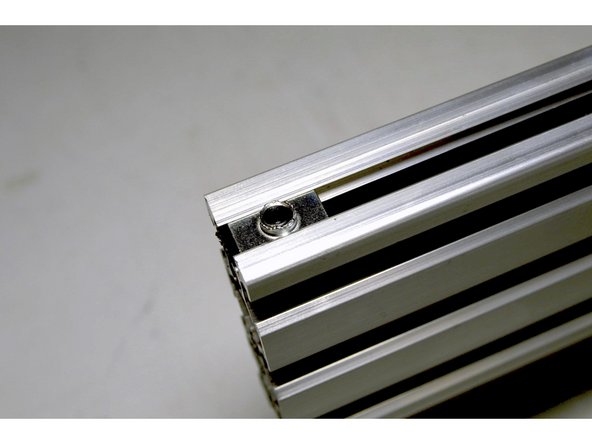

    • Tension the belt and fix the other side

    • Cut the belt flush with the Side Cutter

    • Make sure the X-Carriage can move easily

Finish Line

7 other people completed this guide.
