14. Assemble Frame

Written By: Paul Cronje (and 2 other contributors)
  • Comments: 1
  • Favorites: 0
  • Completions: 14

Difficulty

Moderate

Steps

7

Time Required

00:30:00

Sections

1

Flags

0

  1. X-Axis Assembly

    • X-Axis Assembly

    • Left Y-Axis Rail

    • Right Y-Axis Rail

    Edit

  2. Rear Frame Plate

    • Rear Frame Plate

    • Front Frame Plate

    • Swivel Foot (4Pcs)

    • M5x20 Button Head Screw (14 Pcs)

    • M8 Washers (8 Pcs)

    • M8 Lock Nut (4 Pcs)

    Edit

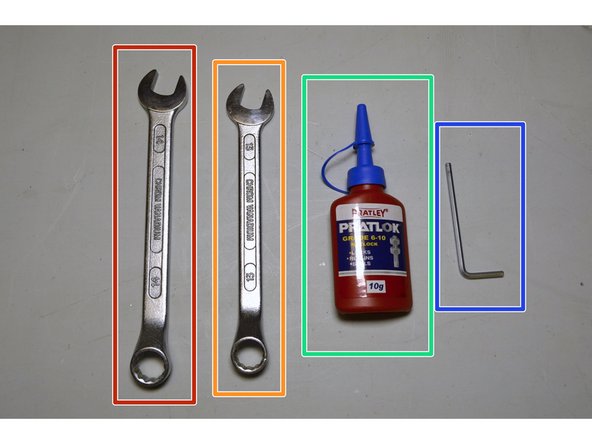

  3. No. 14 Spanner

    • No. 14 Spanner

    • No. 13 Spanner

    • Partley Pratlock

    • 3mm Allen Key

    Edit

  4. Mount the Swivel Feet (4 Pcs) with the M8 Washers (8 Pcs) on both sides of the plate and the M8 Lock Nuts (4 Pcs) Tighten the feet with the No.13 and No. 14 Spanners Tighten the feet with the No.13 and No. 14 Spanners

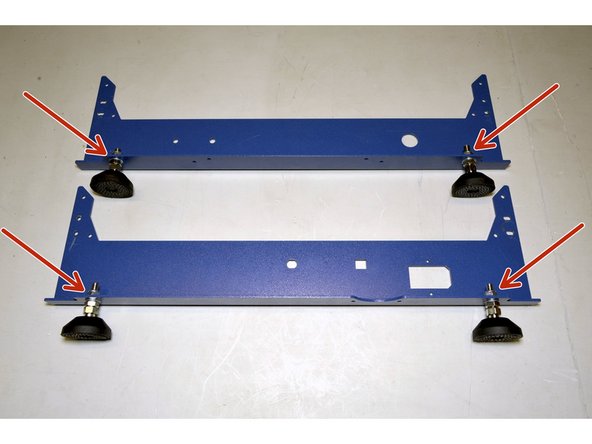

    • Mount the Swivel Feet (4 Pcs) with the M8 Washers (8 Pcs) on both sides of the plate and the M8 Lock Nuts (4 Pcs)

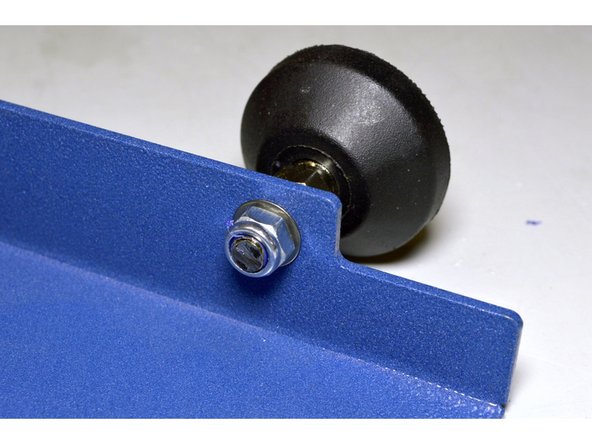

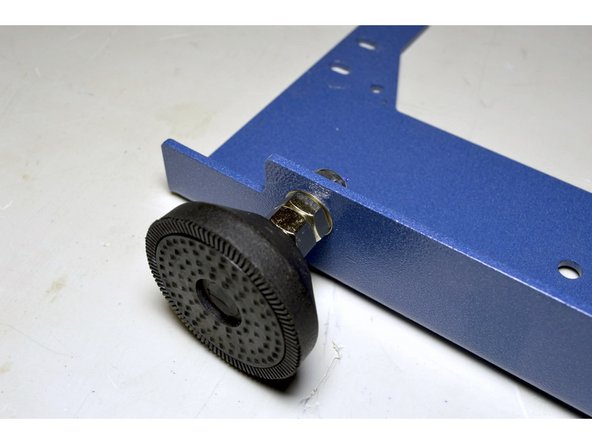

    • Tighten the feet with the No.13 and No. 14 Spanners

    Edit

  5. Assemble the Front Frame Plate with the Left Rail Assembly with the M5x20 Button head screw (2 Pcs) and Partley Pratlock These two screws can be tightened at this stage Assemble the Front Frame Plate with the Right Rail Assembly with the M5x20 Button head screw (2 Pcs) and Partley Pratlock

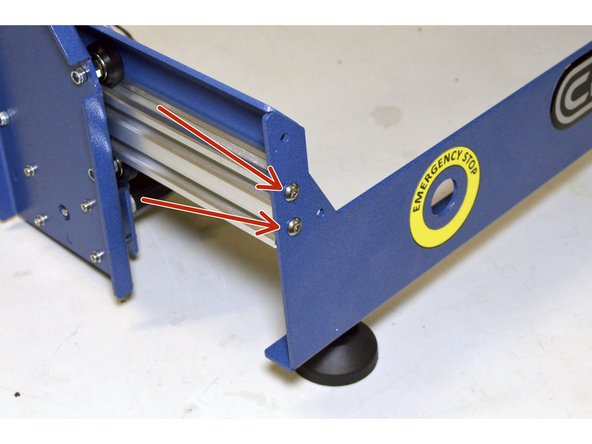

    • Assemble the Front Frame Plate with the Left Rail Assembly with the M5x20 Button head screw (2 Pcs) and Partley Pratlock

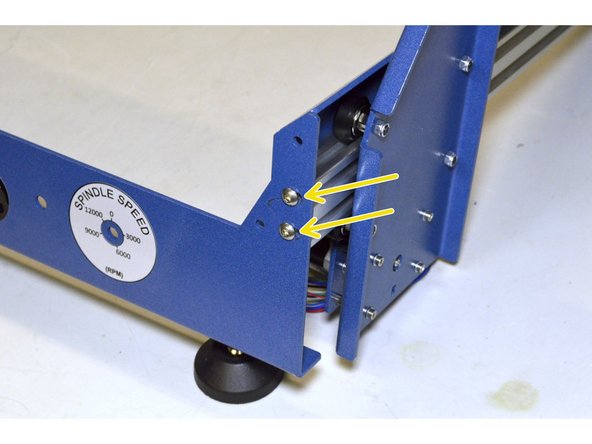

    • These two screws can be tightened at this stage

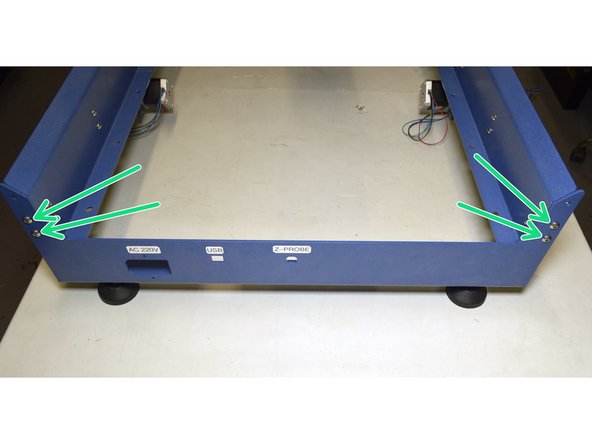

    • Assemble the Front Frame Plate with the Right Rail Assembly with the M5x20 Button head screw (2 Pcs) and Partley Pratlock

    • DO NOT fully tighten these screws yet

    • Assemble the Rear Frame Plate with the Left & Right Rail Assemblies with the M5x20 Button head screw (4 Pcs) and Partley Pratlock

    • DO NOT fully tighten these screws yet

    Edit

  6. Insert the X-Axis Assembly in-between the Left and Right side plates with the spindle facing the Front Frame Plate

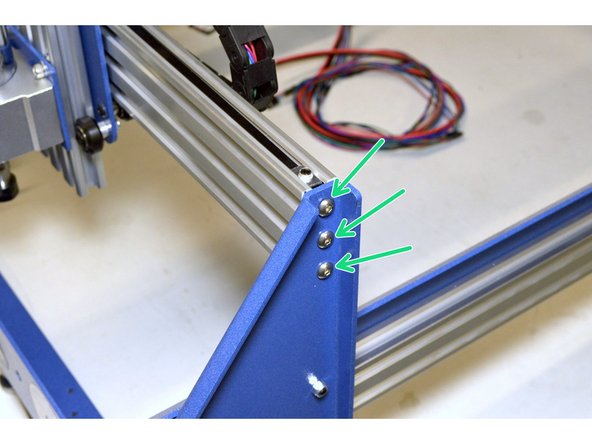

    • Insert the X-Axis Assembly in-between the Left and Right side plates with the spindle facing the Front Frame Plate

    • Mount the 20x60 V-Slot Profile with the M5x20 Button head screws (6 Pcs) and Partly Pratlock on both sides

    • Tighten these screws with the 3mm Allen Key

    Edit

  7. Move the Y-Axis to the front and tighten the M5x20 Button head screws on the front plate with the 3mm Allen Key Move the Y-Axis to the back and tighten the M5x20 Button head screws on the back plate with the 3mm Allen Key

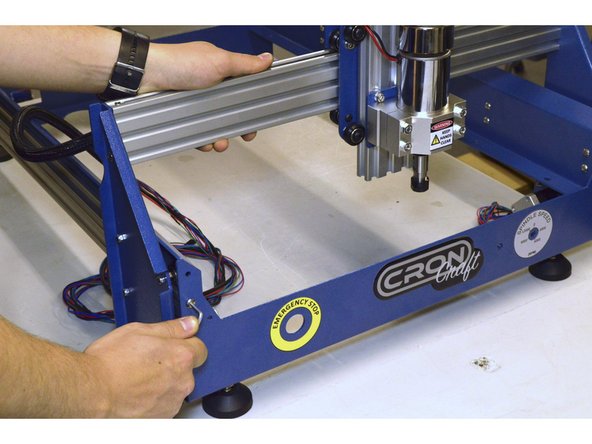

    • Move the Y-Axis to the front and tighten the M5x20 Button head screws on the front plate with the 3mm Allen Key

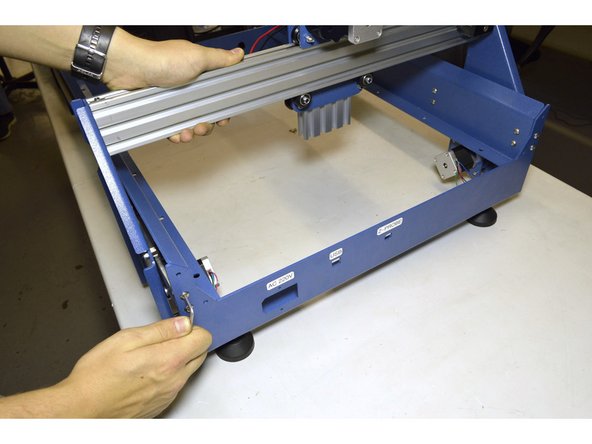

    • Move the Y-Axis to the back and tighten the M5x20 Button head screws on the back plate with the 3mm Allen Key

    Edit
Finish Line

14 other people completed this guide.
