15. Mount electronic interfaces

Written By: Paul Cronje (and 2 other contributors)
  • Comments: 2
  • Favorites: 0
  • Completions: 13

Difficulty

Easy

Steps

6

Time Required

00:10:00

Sections

1

Flags

0

  1. CNC Frame

    • CNC Frame

    • Kettle Plug

    • M3 Lock Nut (2 Pcs)

    • M3x10 Counter Sunk Screw (2 Pcs)

    • 2 Pin GX12 Connector (Soldered)

    • Mounted LED (Soldered)

    • Emergency Stop Plug

    • Emergency stop cable

    Edit

  2. Sharp Nose Pliers

    • Sharp Nose Pliers

    • Flat Screw Driver

    Edit

  3. Mount emergency stop cable to emergency stop as illustrated Disassemble the Emergency Stop Plug as shown in the picture Mount the back end of the plug to the front panel with the orange plate to the top as shown

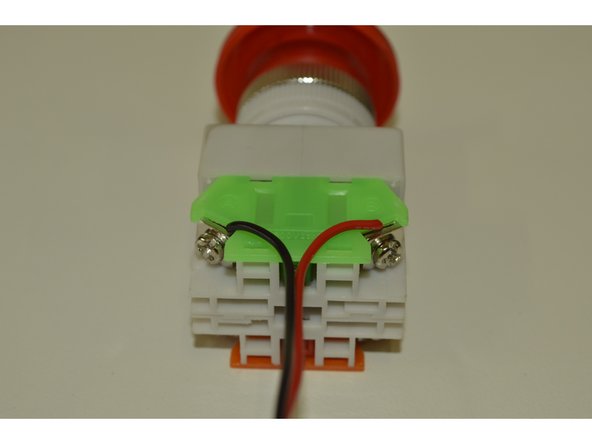

    • Mount emergency stop cable to emergency stop as illustrated

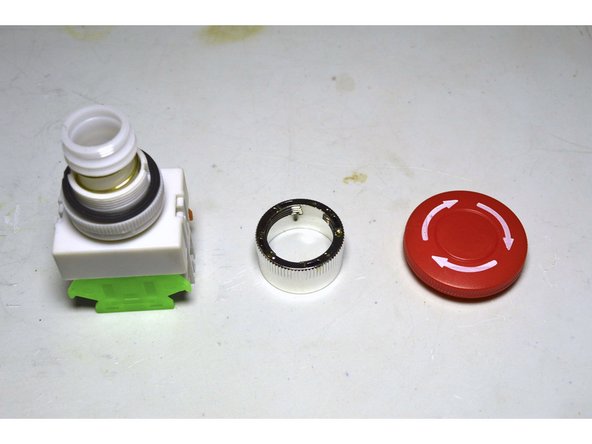

    • Disassemble the Emergency Stop Plug as shown in the picture

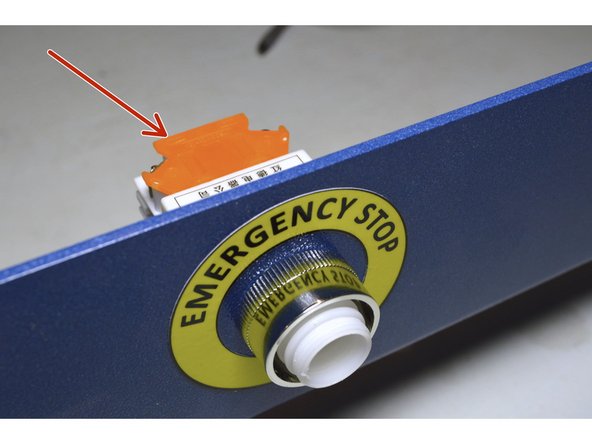

    • Mount the back end of the plug to the front panel with the orange plate to the top as shown

    • Fix the plug with the silver ring and screw the red knob on again

    Edit

  4. Remove the nut awn washer on the LED Pull the wires od the LED through the hole provided

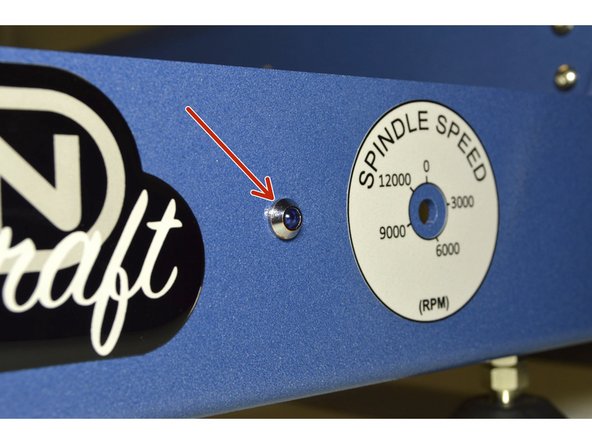

    • Remove the nut awn washer on the LED

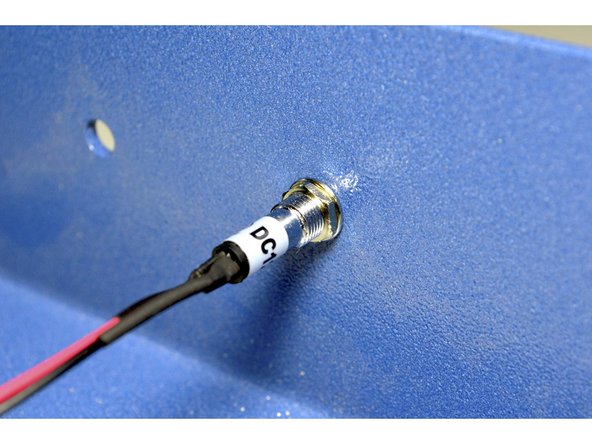

    • Pull the wires od the LED through the hole provided

    • Fix the LED with the washer and nut as shown

    Edit

  5. Remove the nut and washer from the GX12 connector Insert the connector in the Z-Probe hole in the back plate

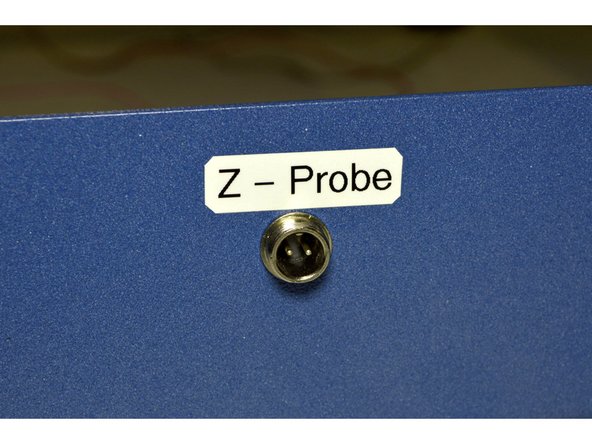

    • Remove the nut and washer from the GX12 connector

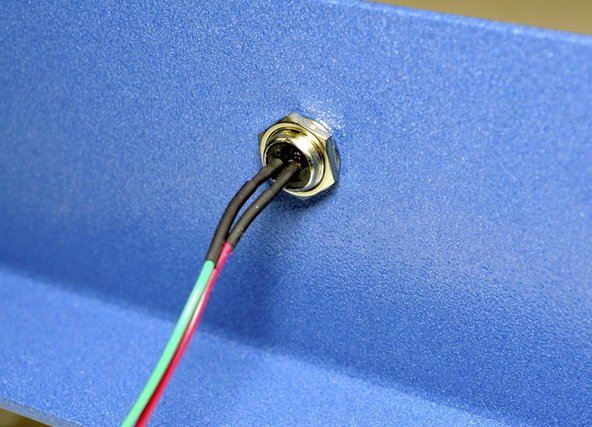

    • Insert the connector in the Z-Probe hole in the back plate

    • Mount the connector with the washer and nut as shown

    Edit

  6. Insert the kettle plug in the cut out provided

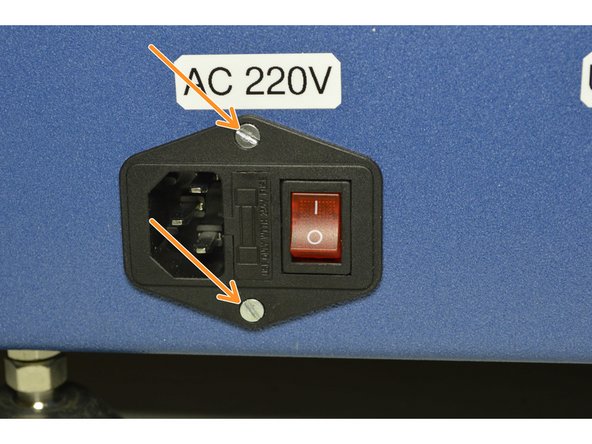

    • Insert the kettle plug in the cut out provided

    • Mount the kettle plug with the M3x10 Counter sunk screws (2 Pcs) and the M3 Lock Nuts (2 Pcs)

    Edit
Finish Line

13 other people completed this guide.

Author

with 2 other contributors

Paul Cronje

Member since: 10/05/2018

6,123 Reputation

46 Guides authored

2 Comments

LED provided is 7.5 mm diameter, while hole in front plate is 7mm diameter after cleaning paint coating and some considerable filing with small files

Gary Nagel - Reply

Done………………….

Francois Maritz - Reply
