17. Mount Power Supplies

Written By: Paul Cronje (and 2 other contributors)
  • Comments: 3
  • Favorites: 0
  • Completions: 13

Difficulty

Easy

Steps

5

Time Required

00:08:00

Sections

1

Flags

0

  1. 400W, 48V Power Supply

    • 400W, 48V Power Supply

    • M4x8 Cap screw (4 Pcs)

    Edit

  2. 100W, 12V Power Supply

    • 100W, 12V Power Supply

    • M3x8 Cap Screw (2 Pcs)

    Edit

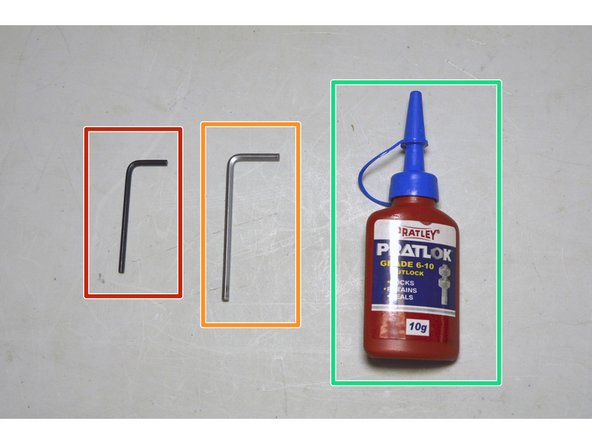

  3. 2.5mm Allen Key

    • 2.5mm Allen Key

    • 3mm Allen Key

    • Pratley Pratlock

    Edit

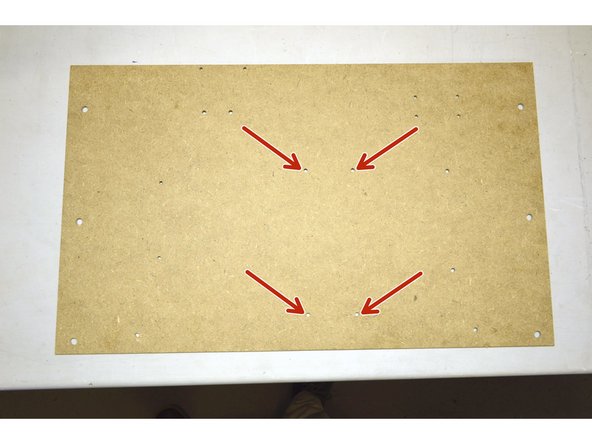

  4. Mount the 400W Power supply to the electronics board through the 4 holes as shown in red on the picture. Use the M4x8 (4 Pcs) to mount the power supply and add Pratley Pratlock to the screws. Fasten with the 3mm Allen Key.

    • Mount the 400W Power supply to the electronics board through the 4 holes as shown in red on the picture.

    • Use the M4x8 (4 Pcs) to mount the power supply and add Pratley Pratlock to the screws. Fasten with the 3mm Allen Key.

    Edit

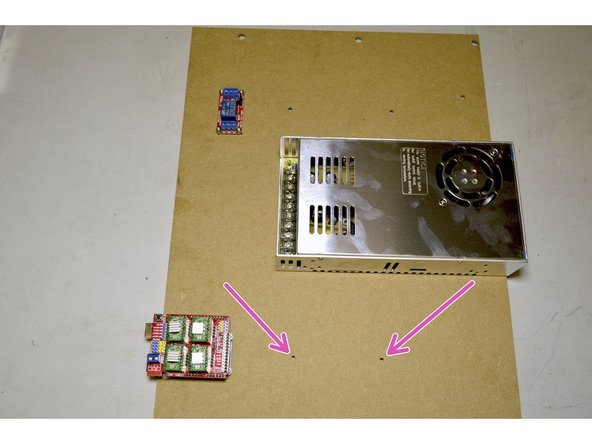

  5. Mount the 100W power supply through the holes indicated in pink. Use the M3x8 cap screws (2 Pcs) to fasten the power supply and use Pratley Pratlock on the screws. Use the 2.5mm Allen Key to fasten the screws.

    • Mount the 100W power supply through the holes indicated in pink.

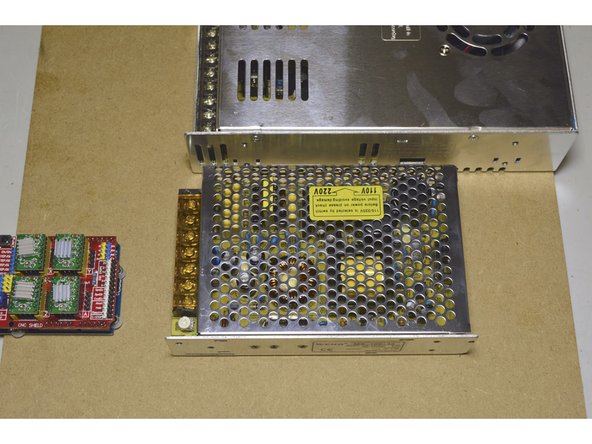

    • Use the M3x8 cap screws (2 Pcs) to fasten the power supply and use Pratley Pratlock on the screws. Use the 2.5mm Allen Key to fasten the screws.

    Edit
Finish Line

13 other people completed this guide.

Author

with 2 other contributors

Paul Cronje

Member since: 10/05/2018

3,750 Reputation

34 Guides authored

3 Comments

Done………………..

Francois Maritz - Reply

Holes also a bit big. Backed all bolts/nuts up with washers.

vincent@modena.capetown - Reply

Holes on the main power supply did not fully align. I just drilled the holes a little bigger.
