20. Mount Drag Chain Brackets

Written By: Paul Cronje (and 2 other contributors)
  • Comments: 2
  • Favorites: 0
  • Completions: 13

Difficulty

Easy

Steps

4

Time Required

00:02:00

Sections

1

Flags

0

  1. This section is NOT required for the Small version. The Small version will not make use of the Y-Axis drag chains.

    • This section is NOT required for the Small version. The Small version will not make use of the Y-Axis drag chains.

    • Y-Drag Chain Bracket Left

    • Y-Drag Chain Bracket Right

    • M4 Nut (2 Pcs)

    • M4x20 Cap Screw (2 Pcs)

    Edit

  2. 3mm Allen Key

    • 3mm Allen Key

    • Pratley Pratlock

    Edit

  3. Slide the M4 Nuts (2 Pcs) into the slots provided in the Printed Parts

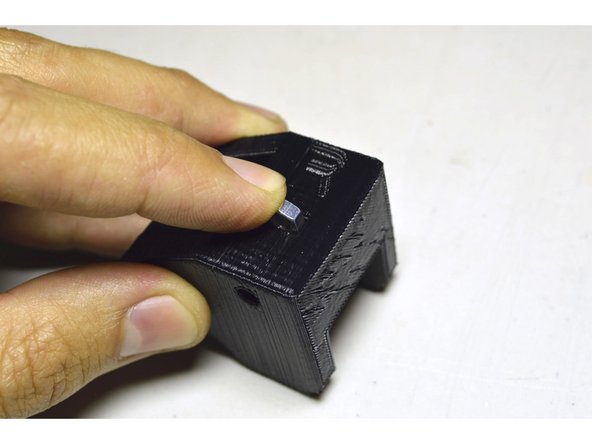

    • Slide the M4 Nuts (2 Pcs) into the slots provided in the Printed Parts

    Edit

  4. Mount the Drag Chain brackets to the Electronics board with the M4x20 cap screws (2 Pcs) and the Pratley Pratlock The lip of the printed part will stick over the edge of the board to keep it from rotating The lip of the printed part will stick over the edge of the board to keep it from rotating

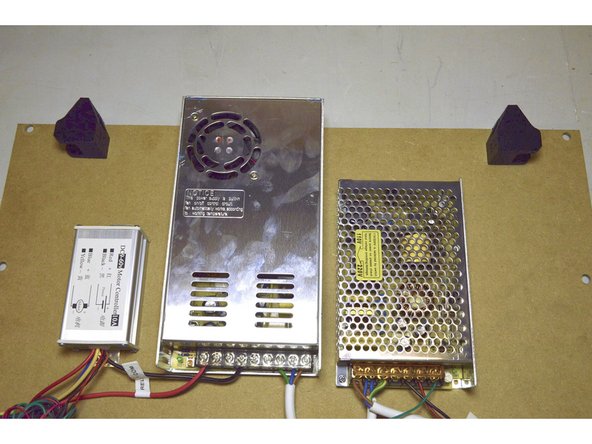

    • Mount the Drag Chain brackets to the Electronics board with the M4x20 cap screws (2 Pcs) and the Pratley Pratlock

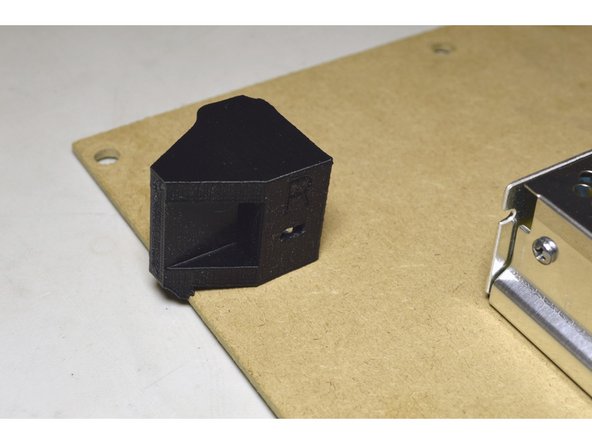

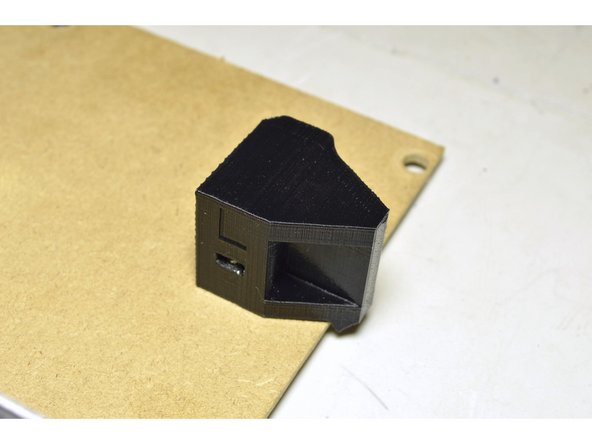

    • The lip of the printed part will stick over the edge of the board to keep it from rotating

    Edit
