26.Mounting Brackets

Written By: Paul Cronje (and one other contributor)
  • Comments: 0
  • Favorites: 0
  • Completions: 6

Difficulty

Very easy

Steps

3

Time Required

Suggest a time??

Sections

1

Flags

0

  1. Mounting Brackets 4pcs

    • Mounting Brackets 4pcs

    • M6x30 Cap screws 4pcs

    • M6x16 Cap screws 4pcs

    • M6 Standard nuts 4pcs

    Edit

  2. No.10 Spanner

    • No.10 Spanner

    • 5mm Allen Key

    Edit

  3. Insert M6x16 Cap screw through adjustable slot on bracket Insert M6x30 Cap screw through adjustable slot on bracket

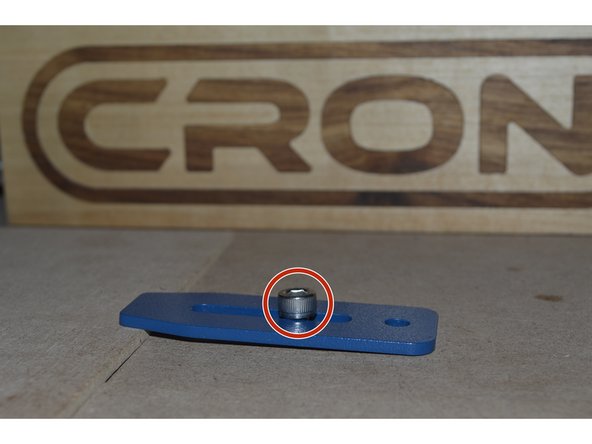

    • Insert M6x16 Cap screw through adjustable slot on bracket

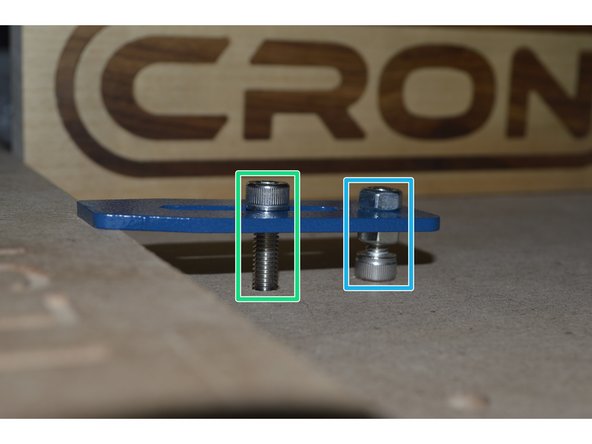

    • Insert M6x30 Cap screw through adjustable slot on bracket

    • Insert M6x16 Cap screw (upside down) with M6 standard nuts (2pcs) both sides of bracket

    • Note: Picture 1 illustrates lower elevation mounting as picture 2 shows how to mount on higher elevations.

    Edit
