24. Mount Cooling Fan

Written By: Paul Cronje (and 2 other contributors)
  • Comments: 5
  • Favorites: 0
  • Completions: 12

Difficulty

Easy

Steps

4

Time Required

00:05:00

Sections

1

Flags

0

  1. 60mm Fan, 12V

    • 60mm Fan, 12V

    • M4x25 Cap Screw (2 Pcs)

    • M4 Nut (2 Pcs)

    Edit

  2. Pratley Pralock

    • Pratley Pralock

    • 3mm Allen Key

    • Sharp Nose Pliers

    • Phillips Screw Driver

    Edit

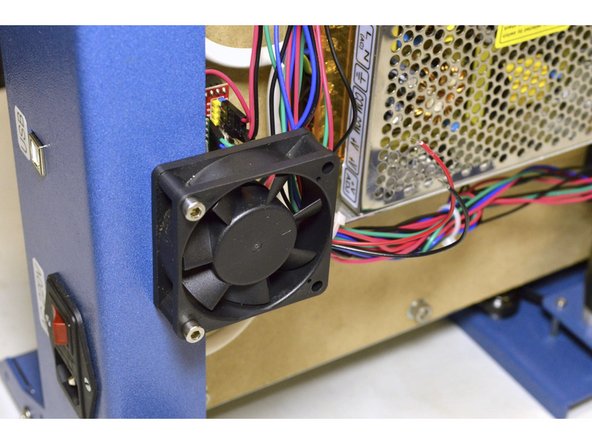

  3. Mount the cooling fan with the sticker facing the electronics and the wires facing the power supplies

    • Mount the cooling fan with the sticker facing the electronics and the wires facing the power supplies

    • Fix the fan with the M4x25 Cap Screws (2 Pcs), M4 Nuts (2 Pcs) and the Pratley Pratlock

    Edit

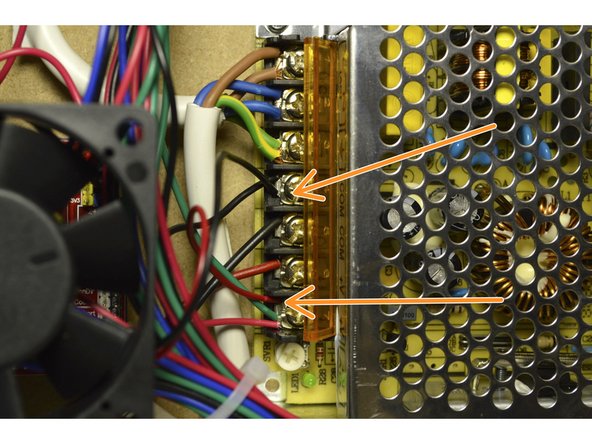

  4. Connect the wires of the fan to the 100W, 12V Power Supply

    • Connect the wires of the fan to the 100W, 12V Power Supply

    • The Red wire connects to the +V port and the Black wire connects to the COM port

    Edit

    The M4x25 cap screws are too short for the fan diameter I received - the thickness of the frame was not taken into account so there is very little screw length protruding to catch the nut! Screws should be a minimum M4x30
